Eikon V2 vs VDI

C8 Corvette vertical door kits compared through component photos and Eikon’s service experience.

Engineering Evolution

C8 Corvette Vertical Doors (Lambo Doors) Conversion

  • V2 vs VDI: movement and bearing design
  • Real service photos and lifting-force evidence
  • Shock access, warranty and ownership
  • Shop the Eikon V2 Series
Red C8 Corvette ZR1 with Eikon V2 vertical lambo door kit installed

What Are Vertical Doors?

Low side view of a blue C8 Corvette with its vertical door raised, showing the open doorway, red interior and front wheel.

Vertical doors, also called Lambo doors, change how your Corvette opens: the original door first swings outward, then rises. The hinge design determines how that motion feels, how the door sits when raised, and how easily the system can be serviced.

Compare Eikon’s V2 Series with the traditional VDI C8 kit below, using our own component photos, installation experience and clearly identified test evidence.

Our comparison photos show the V2-equipped C8 with its doors raised more upright and closer to the body than the VDI-equipped C8 shown. Both Corvette systems are at their normal maximum raised position, as confirmed by Eikon. The Lamborghini Aventador provides a visual reference for the upright scissor-door appearance; the V2 remains an aftermarket C8 system.

THE PARTS. THE WEAR. THE DIFFERENCE.

Where the traditional VDI C8 kit falls short

A raised door should deliver more than a show-car pose. Inspect the contact surfaces, the support system, the service access and the doorway. That is where Eikon’s case for V2 starts.

Our position comes from approximately 31 VDI-to-V2 conversions, inspected components and customer feedback documented by Tim Court, Eikon Motorsports. This is Eikon’s own product comparison. The evidence below identifies what was photographed, what was reported and what the diagrams explain.

EXPERIENCE BEHIND THE DESIGN

25+ years. More than 5,000 VDI installations.

According to Eikon CEO Tim Court, he has personally completed more than 5,000 installations of VDI kits over a career spanning 25+ years specializing in vertical-door sales and installation worldwide. Court is also the designer and engineer behind Eikon’s earlier V1 and current V2 systems. Eikon’s work in this industry began long before the current V2 platform.

We know vertical doors. We know this industry. Years of selling, installing and servicing these systems worldwide have shaped our understanding of what owners want and what a working installation needs. That is the intent behind V2: easier lifting and lowering; smooth, controlled operation; a higher raised-door position close to the car; practical access to service parts; and a company that takes responsibility for the product it designs and supports.

That career experience provides context for our focus on how a hinge operates, how it wears and how it can be serviced after installation. The 5,000-plus figure refers to Court’s VDI installation history across his career; the approximately 31 VDI-to-V2 C8 conversions discussed here are a separate count.

Why we went our separate ways: Eikon says it could no longer accept the recurring complications and lack of accountability it experienced in its dealings with the team at Vertical Doors, Inc. Eikon chose to take responsibility for its own product design and customer support. Read Eikon’s account of that decision →

THE DIFFERENCE YOU FEEL EVERY DAY

Much easier to lift. Much easier to lower.

Customers who have switched from their previous VDI C8 installation to Eikon V2 consistently tell us the doors are substantially easier to raise and lower. Several have specifically told us their spouse or partner can now operate the doors comfortably. That improvement in everyday usability is one of the main reasons owners give for choosing the conversion.

The V2 design brings together sealed hinge bearings, rolling arm support, C8-specific geometry and matched lift-assist shocks. The goal is controlled movement with less effort in both directions—not simply a door that looks different when raised. These are customer reports and Eikon’s hands-on experience; the historical V1 gauge footage is a separate demonstration.

01 / CONTACT DESIGN

VDI: sliding contact and a photographed wear track.

FIXED CONTACT / ARM TRAVELSINSPECTED VDI INTERFACE PRINCIPLE

On the removed VDI assembly shown below, Eikon identified a visible track where the black support component contacted the back of the arm. Tim attributes that track to sliding contact during operation. The separate lateral adjustment screw is a different part.

02 / V2 ROLLING SUPPORT

V2: rolling support at the arm.

ARM TRAVELS / BALL ROTATESV2 BALL-TRANSFER PRINCIPLE

V2 places a 1-inch ball-transfer assembly behind each arm. The ball rolls with the moving arm instead of relying on the fixed sliding contact inspected on that VDI kit. This is a tangible hardware difference, not just a different cover or finish.

Animations are simplified mechanism schematics. They are not to scale, do not reproduce exact motion or contact stresses, and do not simulate wear rate. Rolling support reduces reliance on sliding at this interface; it is not friction-free or wear-proof.

Inspect the V2 hardware behind the explanation.

Eikon V2 main bearing housings with covers removed to expose the sealed lift bearings
Two main lift bearings per hinge; four per complete kit. Each is specified at 2-inch OD and 1-inch ID.
Actual V2 hinge arm resting against its separate silver ball-transfer support
The ball-transfer assembly supports the arm; it is separate from the main lift bearings and shock-end sockets.

V2 with the door raised: installation close-up

Eikon V2 vertical door hinge and orange lift-assist shock on a C8 Corvette with the door raised and fender removed during installation.
Door raised during installation. The removed fender exposes the V2 main housing, hinge arm and extended lift-assist shock.

This original fender-off installation photo exposes the V2 main housing, hinge arm and extended lift-assist shock with the C8 door raised. The upper and lower shock ends use ball-and-socket connections with retaining clips; these attachments are separate from the hinge’s rolling bearings.

The fender is removed here to show the installation layout. Routine V2 shock replacement does not require removing the fender or other body panels. The companion lowered-door and finished views are on our V2 engineering and technical specifications page.

The four-month example: inspect the original photographs.

Removed VDI C8 hinge and shock from the four-month customer service example
The complete assembly removed from the customer’s C8 Stingray.
Original close-up of the VDI arm contact track beside the black support component
The visible contact track identified during Eikon’s inspection. Open the original to examine it.

The customer reported difficult lifting, wobble and squeaking after four months and chose V2. Those symptoms and the installation history come from Eikon’s service account. The images document this assembly’s visible condition. They do not establish a failure rate for all VDI kits, groove depth or the sole cause of each symptom.

03 / STRENGTH & LOAD PATH

Judge the assembly, not the metal’s name.

DOORARMPIVOTSUPPORTVEHICLEBRACKETEVERY CONNECTION CONTRIBUTES

V2 specifies 0.5-inch A36 steel arms and 5/8-inch 6061-T6 aluminum bracket components. Each hinge has two main sealed lift bearings, two outward-swing tab bearings and a separate ball-transfer support. The shock’s clipped ball-and-socket ends perform a different job again.

A strong material alone cannot compensate for an unsuitable section, pivot, fastener or load path. Neither a visible wear track nor a material label supplies a finished-hinge strength rating.

04 / WEAR & TOLERANCES

Alignment depends on the working interfaces.

CLEARANCE MUST BE MEASURED

If a working support surface wears, its relationship to the moving arm can change. Noise or play deserves inspection of the actual contact surfaces, pivots, fasteners and adjustment—not an assumption that another adjustment explains everything.

Compare drawings, measured clearances and repeatable loaded tests before claiming one kit holds a tighter tolerance or carries a higher load. Eikon has not published a matched V2-versus-VDI proof-load, fatigue or tolerance study. The diagrams explain the questions; the photographs show the parts.

Geometry: look at the doorway, not just the door.

In Eikon’s comparison photographs, the blue V2-equipped C8 carries its doors higher and closer to the body than the white VDI-equipped C8. Eikon confirms both are at their normal maximum raised position. The lower, more outward position of the pictured VDI installation is the practical contrast: consider the space left around the entry path as well as the show-car appearance.

Both systems first swing outward before lifting. The Lamborghini is a visual reference, not an identical mechanism. Camera positions and vehicle differences mean the photos cannot establish exact clearance, opening angle or parking width. Compare the labeled front and side photographs below.

Front comparison: blue V2 Corvette at left, white VDI Corvette at center and red Lamborghini at right, with doors raised
FRONT VIEW / Blue V2 C8: left. White VDI C8: center. Lamborghini: right. Compare the raised-door position relative to the body.

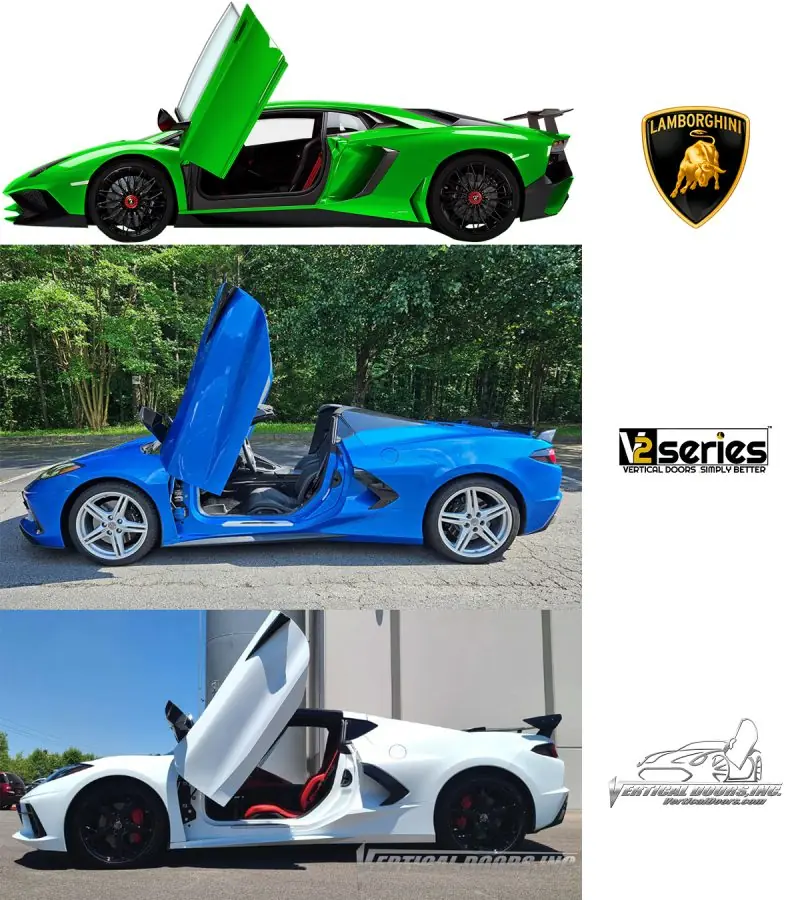

Side comparison: Lamborghini above, blue V2 Corvette in middle and white VDI Corvette below, showing raised doors and entry areas
SIDE VIEW / Lamborghini: top. Blue V2 C8: middle. White VDI C8: bottom. Inspect the doorway left beneath each raised door.
05 / MAINTENANCE BURDEN

Grease access is an ownership question.

VDI’s published terms call for hinge grease-fitting lubrication every 6–12 months and frequent cleaning and lubrication of the shock-end joints. V2’s sealed hinge bearings require no routine external greasing. That is a specific recurring task removed at those bearings.

A grease fitting is not itself a defect. V2 still needs inspection, cleaning and attention if movement changes; a break-in adjustment can be necessary.

06 / SERVICE ACCESS

A replacement shock should not become a bodywork project.

In Eikon’s service experience, both V2 shocks can be replaced in under three minutes without body-panel removal. The door must be properly supported and the service instructions followed. This is Eikon’s hands-on observation, not a guaranteed first-time owner result.

On traditional VDI C8 installations Eikon has serviced, replacing shocks has required at least fender removal. That extra access work matters even when the replacement part is available.

PUBLIC STATEMENTS / CHECKED NOVEMBER 2, 2026

VDI’s statements deserve more than a headline-level comparison.

“The only USA manufacturer” is not evidence of superior engineering.

VDI’s site footer makes that exclusivity claim. Eikon disputes the implication that customers have no independently engineered alternative: the V2 component photographs and specifications show the system we offer. Manufacturing-origin documentation is a separate question; we are not presenting component photographs as proof of either company’s domestic-content percentage.

Read VDI’s product page and footer · Inspect Eikon’s V2 components

A “knockoff kit” label does not substitute for a component comparison.

VDI’s C8 product page uses that label in an image description alongside a customer review naming Eikon. Eikon rejects that characterization as a description of V2. The linked V2 hardware shows our actual bearing and arm-support arrangement. The review does not identify a V2 model, serial number or component analysis; we cannot determine the kit generation or resolve that customer’s installation history from the page alone.

Read the statement in its original context · Compare the actual components

Read the shock terms, not just the warranty headline.

VDI’s terms specify six months for shocks and exclude shipping. Eikon’s lifetime kit coverage includes shocks, is transferable and includes approved warranty shipping both ways worldwide. That is a concrete coverage difference; it should not disappear behind broad warranty language.

VDI’s written shock terms · Eikon’s written coverage and conditions

Bolt-on does not mean modification-free.

VDI’s current C8 listing correctly discloses hidden trimming and body-panel removal. Eikon also discloses the hidden changes required for V2. We do not call that current VDI disclosure false. Compare the actual installation and future service requirements rather than assuming either kit leaves every modified area untouched.

VDI installation disclosures · Eikon installation guidance

These are specific disagreements, coverage comparisons and design critiques. We have not established that every VDI marketing statement is false. Current source pages take precedence over stale search snippets; this comparison covers the traditional C8 vertical-door system, not VDI’s different ZLR system.

Eikon’s verdict: choose the design you can inspect and support.

We choose V2 for its rolling arm support, separate sealed pivot bearings, raised-door position and accessible shock connections. The inspected VDI wear track, the service-access experience and VDI’s own lubrication requirements explain why we moved away from installing that system. These are concrete differences an owner can examine.

Read the detailed component investigation → · Inspect V2 specifications → · Choose your V2 kit →

Common questions about V2 and VDI

Questions C8 owners ask about V2 and VDI

What is the main difference between Eikon V2 and a traditional VDI C8 kit?

V2 uses sealed main and tab bearings plus a rolling ball-transfer support for controlled hinge movement. It also provides body-panel-free shock access and a transferable lifetime shock replacement warranty. Eikon’s comparison combines its service experience with the linked VDI maintenance and warranty information.

Does the V2 kit need grease or constant adjustments?

No routine hinge greasing is required. A slight adjustment can be needed after shock break-in; recurring adjustment is not expected as normal maintenance. Contact Eikon if operation changes or a shock loses pressure.

How many bearings are in a complete V2 kit?

There are four main lift bearings and four tab bearings, plus two sealed ball-transfer bearing assemblies supporting the arms. The shock ends use locked ball-and-socket attachments, a different component type.

Does the lifetime shock warranty transfer to the next owner?

Yes. Eikon’s V2 lifetime shock replacement warranty is transferable. Replacement-shock repainting, original re-etching and shipping both ways worldwide are included; customer fitting is normally required.

Can I see installations or discuss a VDI-to-V2 conversion?

Browse the customer installation gallery, view the installation map, or contact Eikon about your C8 and existing kit.

Evidence sources and comparison limits

Component photographs, approximately 31 conversions, four-month customer history and service observations: Tim Court, Eikon Motorsports. These are first-party observations, not an independent laboratory test. VDI maintenance and warranty terms checked November 2, 2026. VDI states a six-month shock warranty excluding shipping; Eikon’s current written warranty covers the kit including shocks for life, transfers to the next owner and includes approved warranty shipping both ways worldwide. Read each policy’s full conditions. Historical force-gauge footage at 2:55 identifies Eikon V1, not V2. No V2 lifting-force reduction percentage is established by that footage.

Ordering, installation and ownership terms

V2 Series retail kit price is $3,299.00. Professional installation is a separate $1,800 service throughout the United States, including all travel expenses. International installation adds $300–$600 depending on country. Check the product page for any current kit offer and your selected options.

New orders can take up to 3 business days to enter production. Kit-only orders ship 3–7 business days after production begins; transit time is additional. Orders with Eikon installation are typically installed 4–6 weeks after production begins. No payment is taken before production, and payment is required before the kit can ship.

U.S. kit shipping is free. International shipment rates are determined at shipment. For international installations, Eikon can bring the kit; applicable customs and duties are covered within the quoted international installation surcharge.

Standard customer-name and serial-number etching on the kit caps and shocks is included. Additional custom engraving is not currently offered. For a custom color, contact Eikon when placing your order.

The entire V2 Series lifetime warranty transfers to the next owner and covers the frame, hinges, components and shocks. Eikon installation workmanship is covered for life. Covered warranty shipping is paid both ways worldwide. Misuse, intentional damage and vehicle-accident damage are excluded. Damage caused by incorrect customer or independent installation is excluded, while the remaining kit coverage continues.

Cancellation is permitted without penalty. Uninstalled kits are returnable before the scheduled Eikon installation date, or for kit-only orders when requested within 7 calendar days of delivery. There must be no signs of installation. A $200 repurposing/restocking fee is the only refund deduction; the customer pays return shipping. Eligible refunds are initiated within five business days after receipt and inspection. Read the full return and warranty terms.

Current C8 V2 installations require three hidden modifications: trimming the inner fender rib, bending back the upper L-shaped bracket, and removing the lower tab. These modifications are concealed by the reassembled bodywork. Factory hinges can be reinstalled, but reinstalling them does not restore trimmed material or the removed tab.
